150A Watt Meter Power Analyzer Digital LCD Solar Volt Amp Anderson Style Plug AU
150A Watt Meter Power Analyzer Digital LCD Solar Volt Amp Anderson Style Plug AU
- All 5-Star Customer Reviews
- 30 Day Returns
- Ships within 48 Hours
Couldn't load pickup availability
Returns & Shipping
Returns & Shipping
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. For more information, please read our full policy here.
To read our shipping policy please click here
Features
Prevents peak currents damaging battery, ESC, motors, wiring and connectors
Verifies sufficient operating voltage under load
Individual cell balancing.Set cutoff voltages, check battery capacity health
Confirms proper battery charger operation (connect between your battery and charger)
Detect receivers and actual operating current so as to make sure whether an UBEC is needed

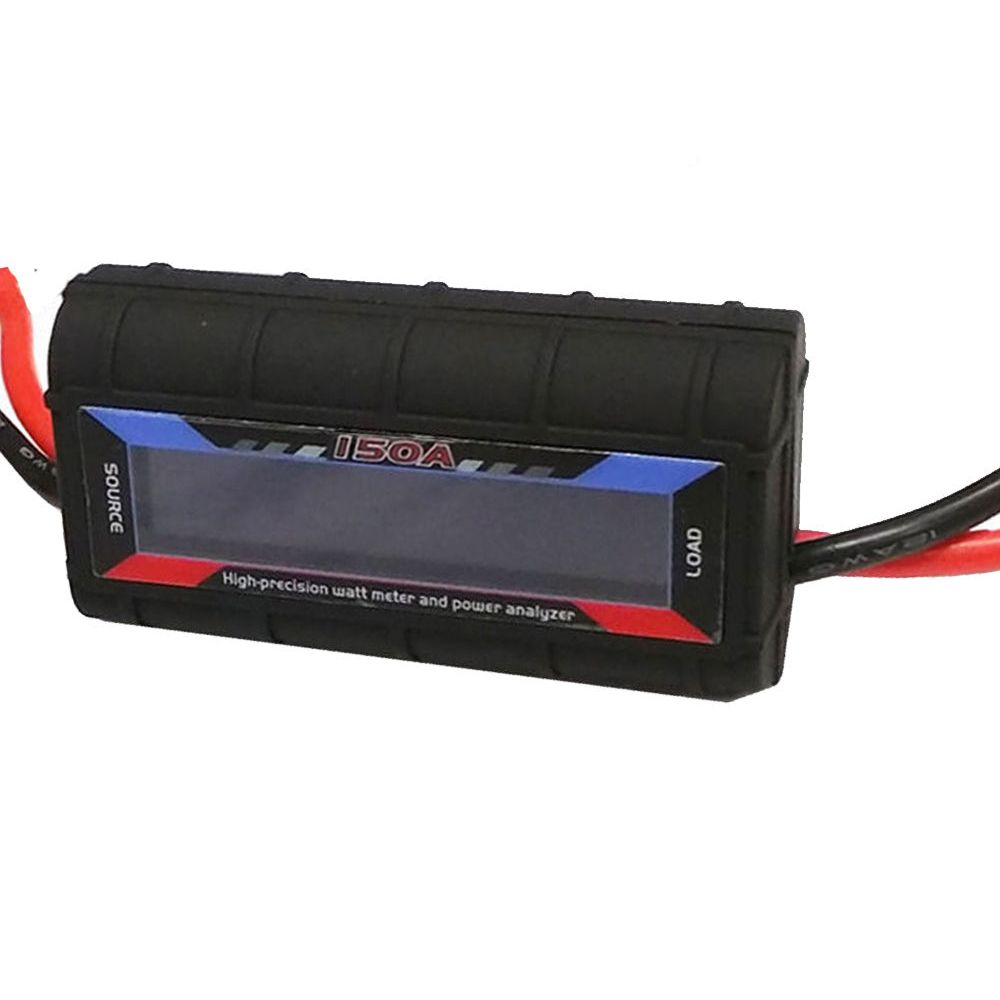

Blue backlit LCD display
2x Anderson Style Plug included

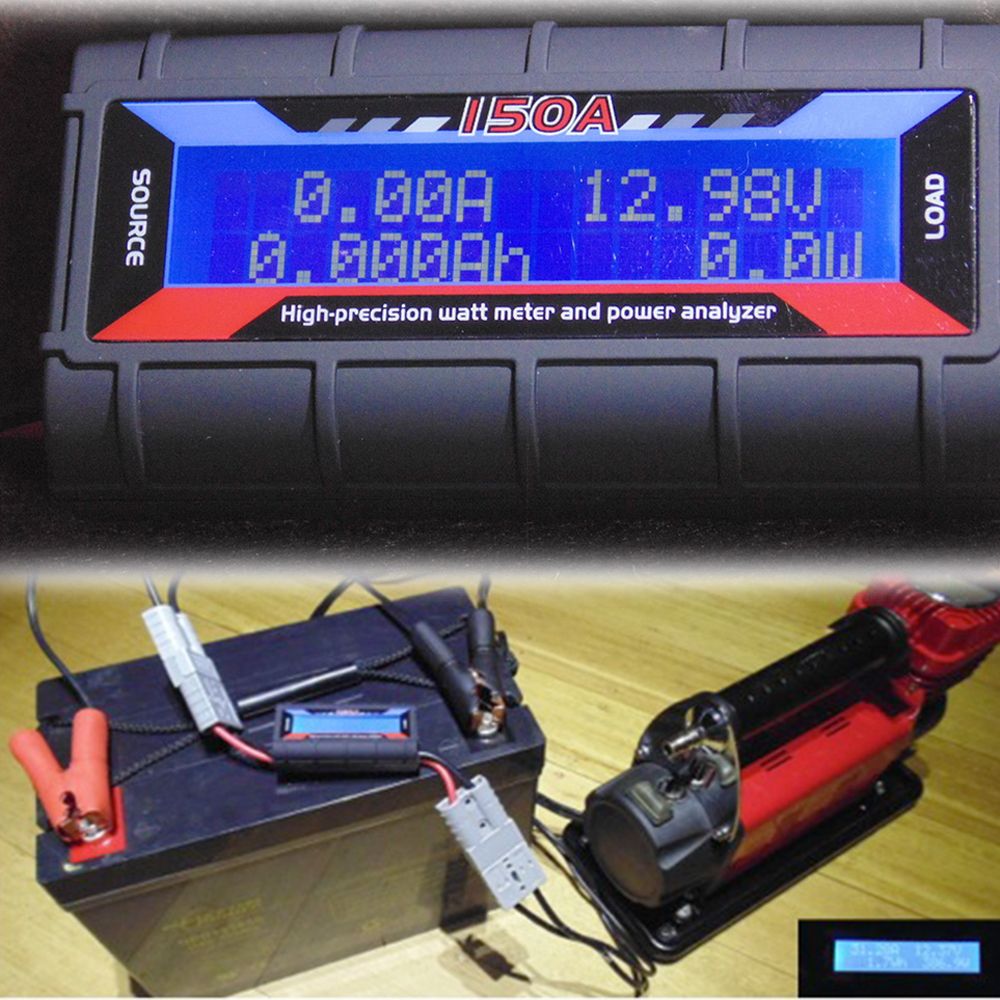

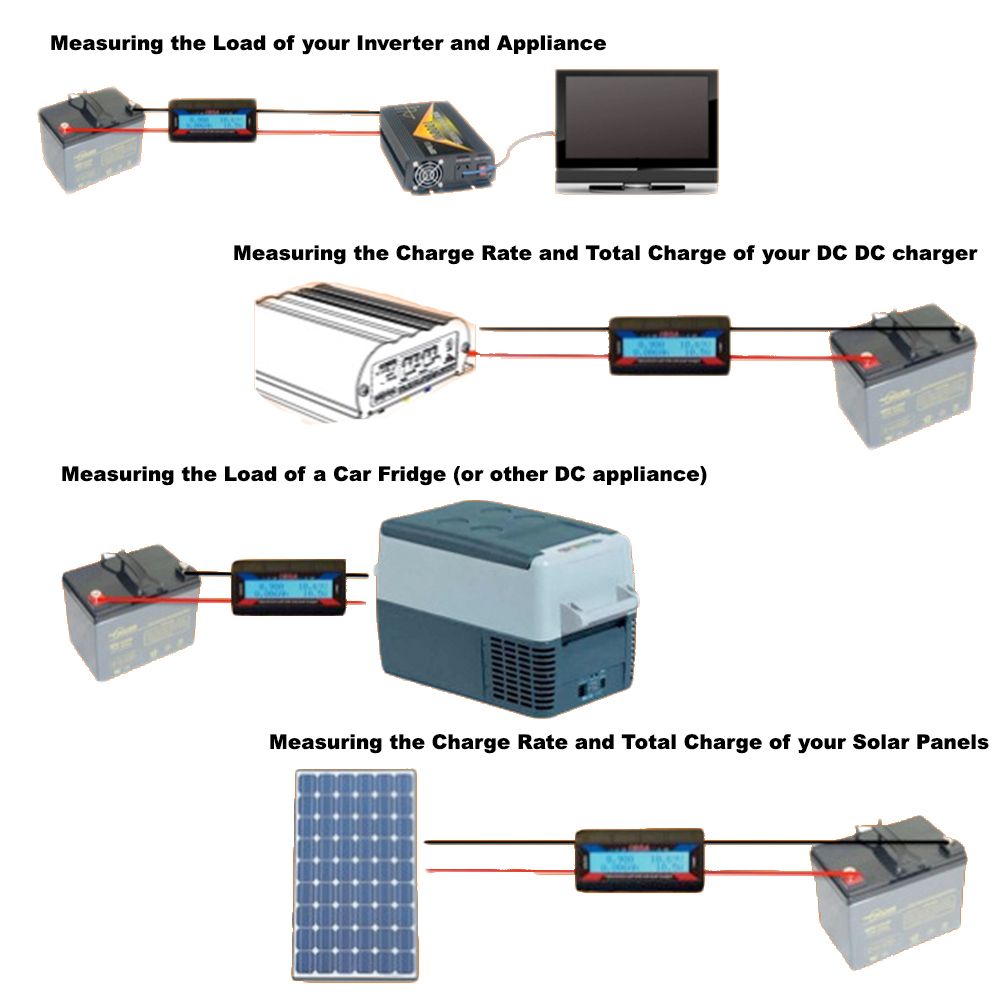

These meters are easily plugged in, in-line, to measure:
Amp Hours(Ah) - Total charge Ah delivered from source to load
Amp Peak (Ap) - Highest amp value delivered (Typically startup cycle for inverters, compressors, fridges etc.)
Amp(A) - Amps being delivered at that point in time
Voltage - Source voltage, and minimum source voltage. Good for measuring voltage at lowest
point of charge -- E.G. Minimum overnight voltage of car fridge battery
Power(Watts) - Peak watts, watts being delivered at that point in time
Specifications
Operates from 4.8-60V
0V with optional auxiliary battery
Measures: 0 to 130 Amps (resolution 0.01A)
Measures: 0 to 60V (resolution 0.01A)
Measures: 0 to 6554W (resolution 0.1W)
Measures: 0 to 65 Ah (resolution 0.001 Ah)
Measures: 0 to 6554 Watt Hours (resolution 0.1 Wh)
Dimensions: 85 x 42 x 25mm
Weight: 85g
Color: Black
Package Content:
1 x Watt Meter and Power Analyzer 150 Amps with 2 Anderson Style Plug
1 x User's Manual
