X-BULL Winch Solenoid Relay Wiring Controller 500A 12V and 150ft Wireless Remote
X-BULL Winch Solenoid Relay Wiring Controller 500A 12V and 150ft Wireless Remote
- All 5-Star Customer Reviews
- 30 Day Returns
- Ships within 48 Hours
Couldn't load pickup availability
Returns & Shipping
Returns & Shipping
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. For more information, please read our full policy here.
To read our shipping policy please click here

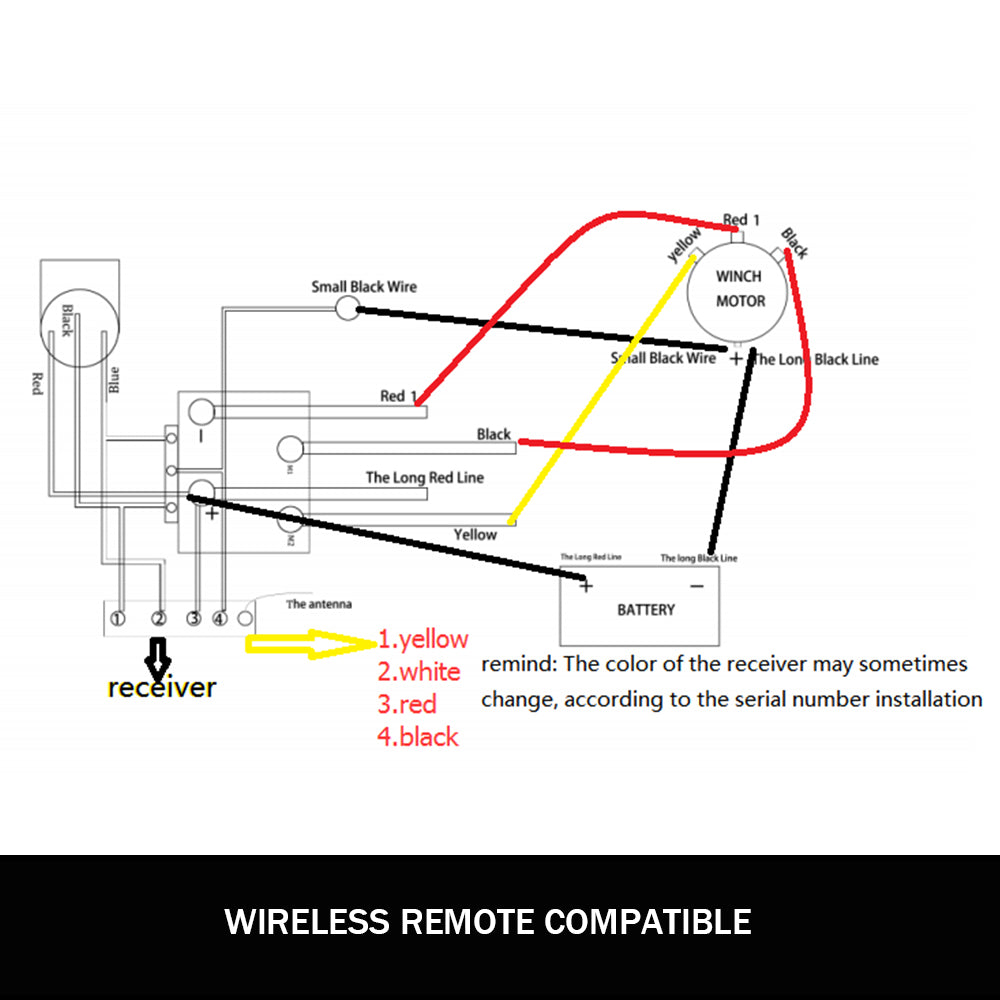

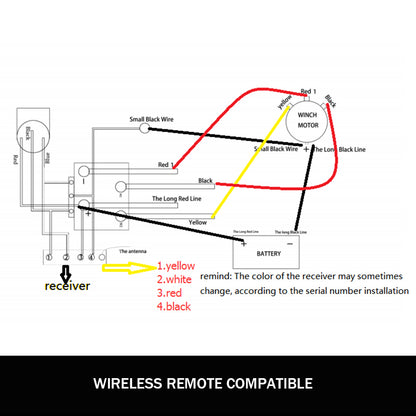

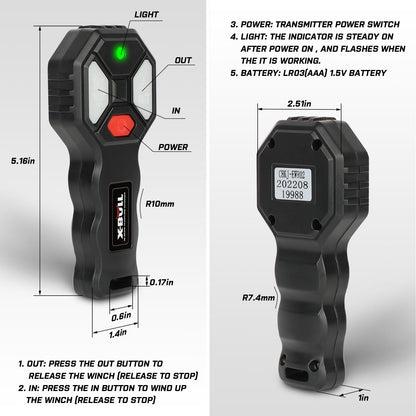

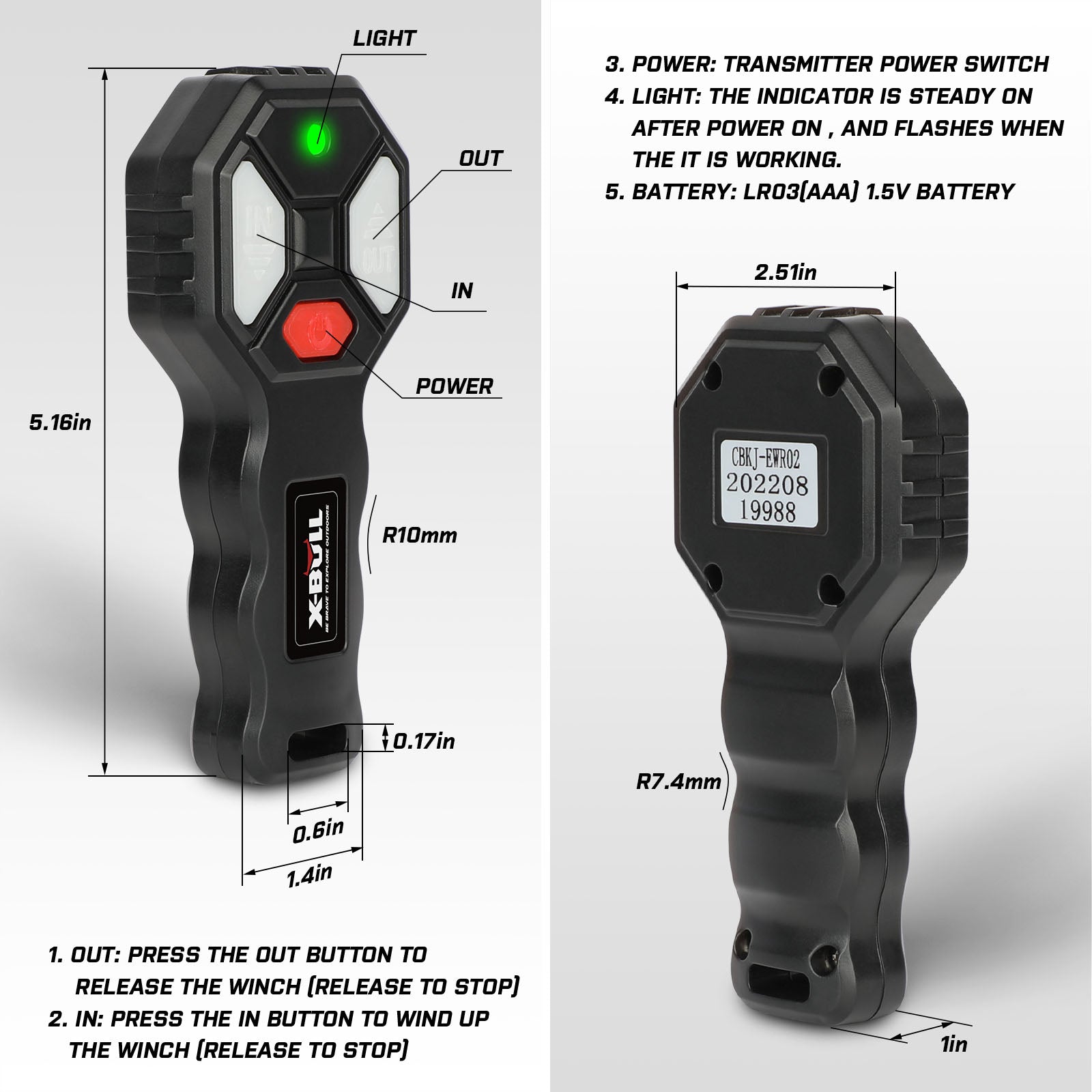

Wireless remote control
Features:
Wireless winch remote control with twin handset.
Will work with any 12 volt solenoid operated winch.
Latest heavy duty long range model
Visual indicator light shows remote operation
2 wireless remotes
Specification:

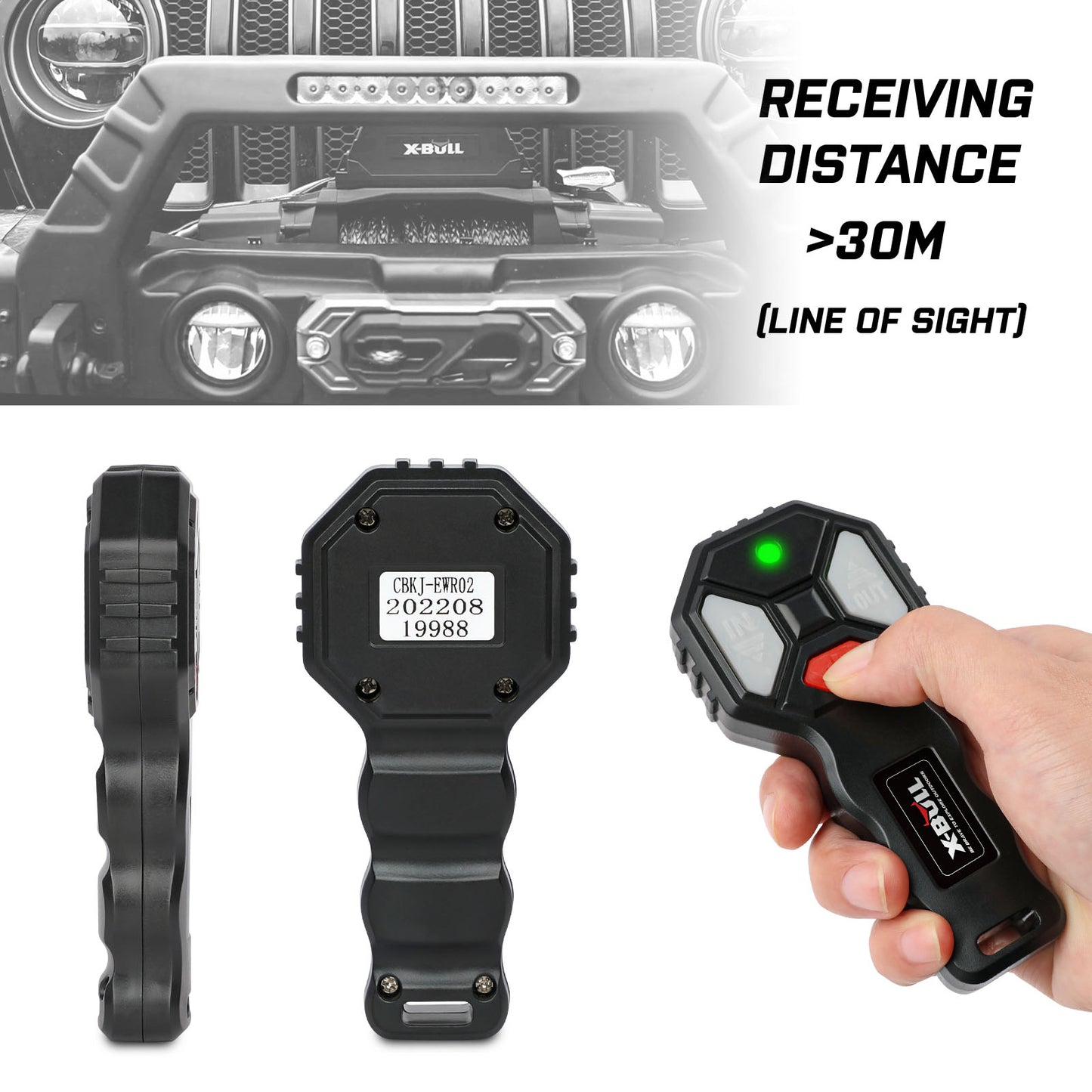

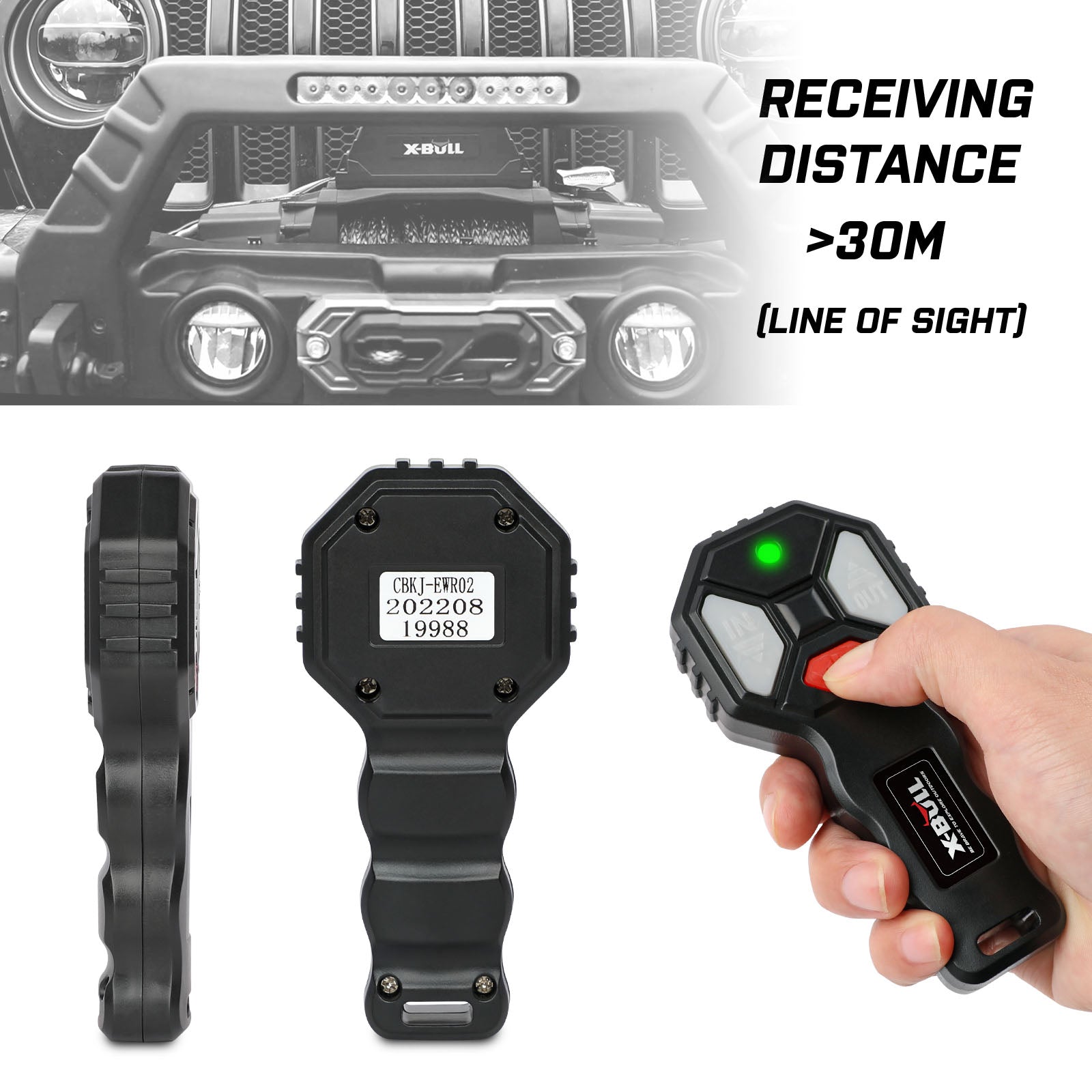

Range: Approx 45metres
Power voltage:12V
Working Frequency: 315MHz/433.92MHz
The Remote control needs to be activated
To activate
Press both the two buttons at same time for 5 seconds until the LED lights up.
Turn off
Press both the two buttons at same time for 5 seconds until the LED lights turn off.
Caution
the remote will power off automatically after 2 minuies.

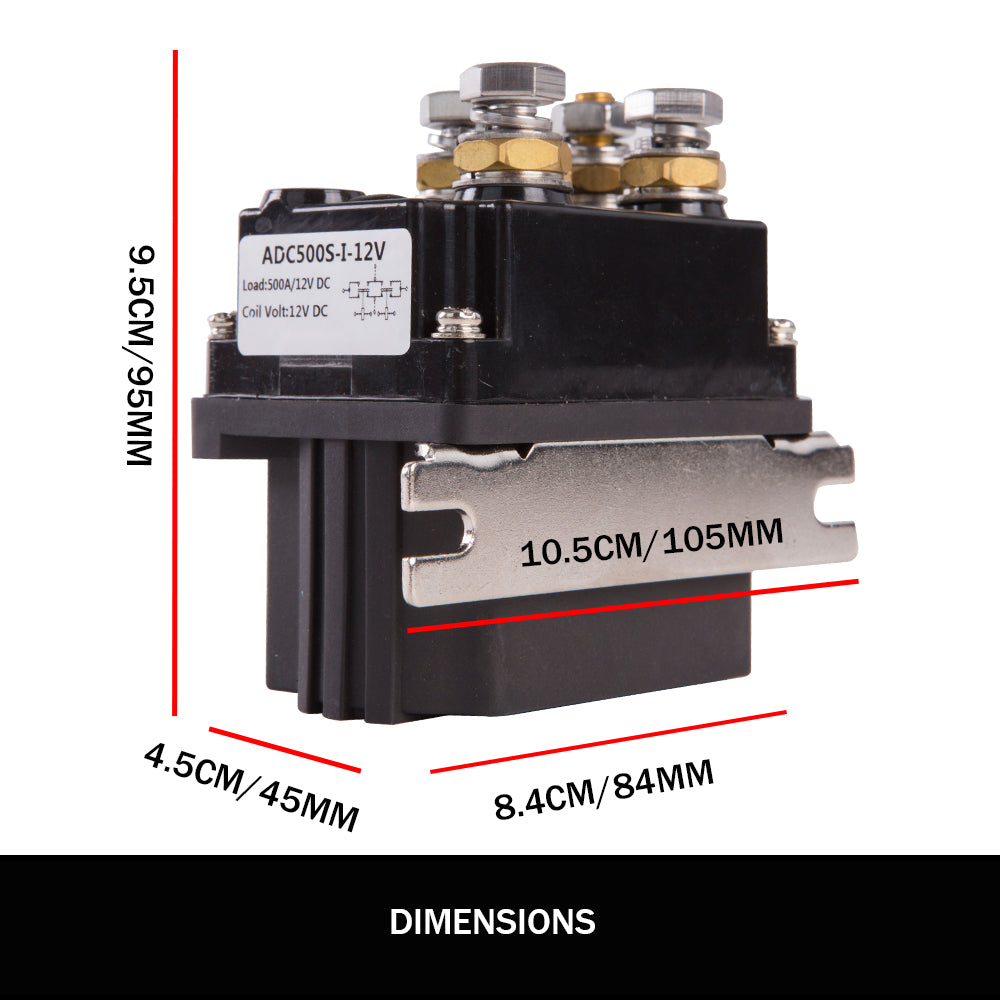

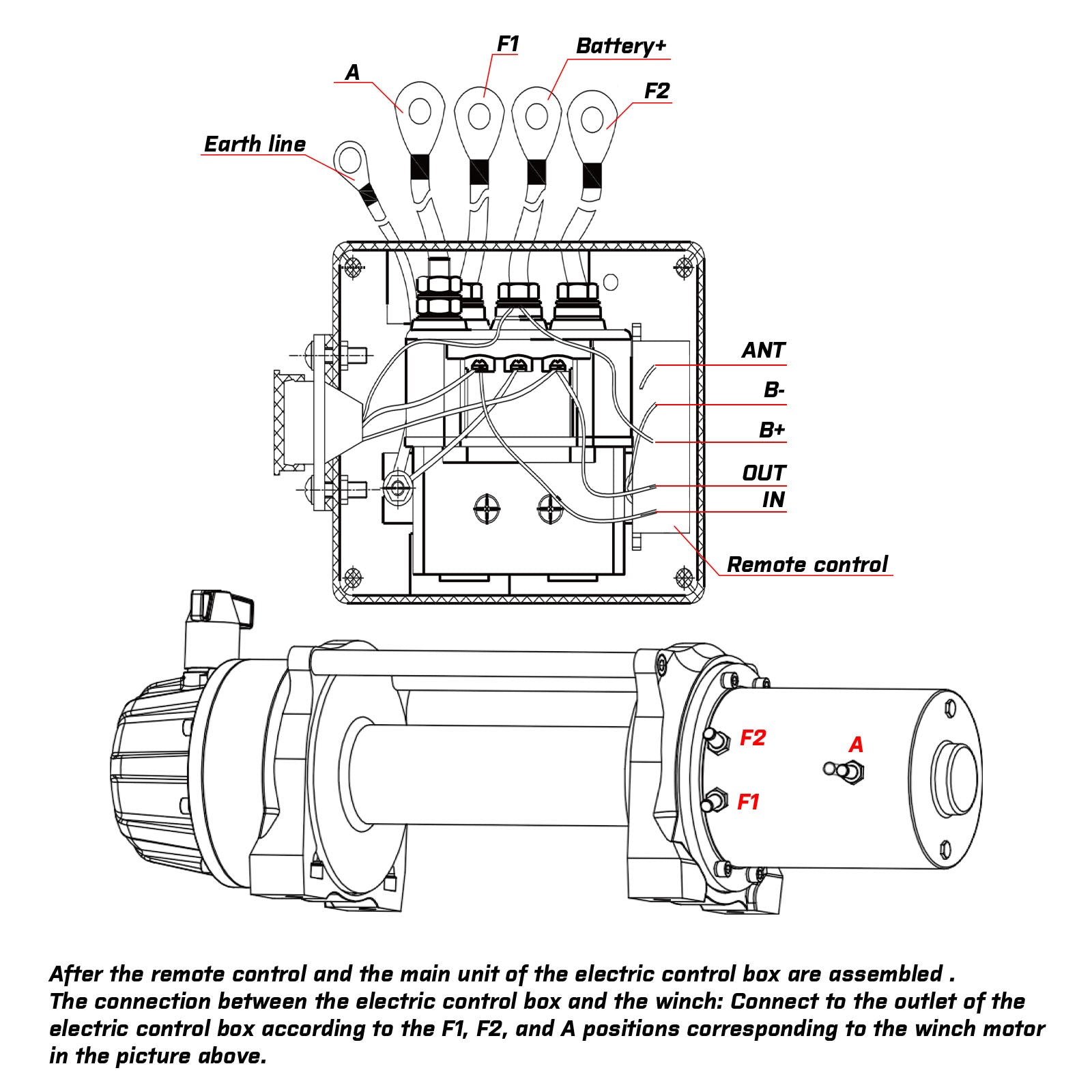

Winch Solenoid
Description:
Coil rated voltage :6-110V DC
Operating power :15W
Contact circuit voltage and loading current:80V DC Max 250V AC 500A
Mechanical life :100,000Ops
Electrical life :50,000Ops
Environment temperature :-40 C -85 C
Frequency :10Hz-200Hz
Speed : 60-100 per min
Operation regulation :Continue
Installation direction :Random
Features:
500amp 12v Winch Solenoid
Sealed and corrosion resistant
Solid heavy duty construction
Wireless remote compatible
Solid heavy duty construction
Suitable 9500lbs-17000lbs - Series wound and permanent magnet

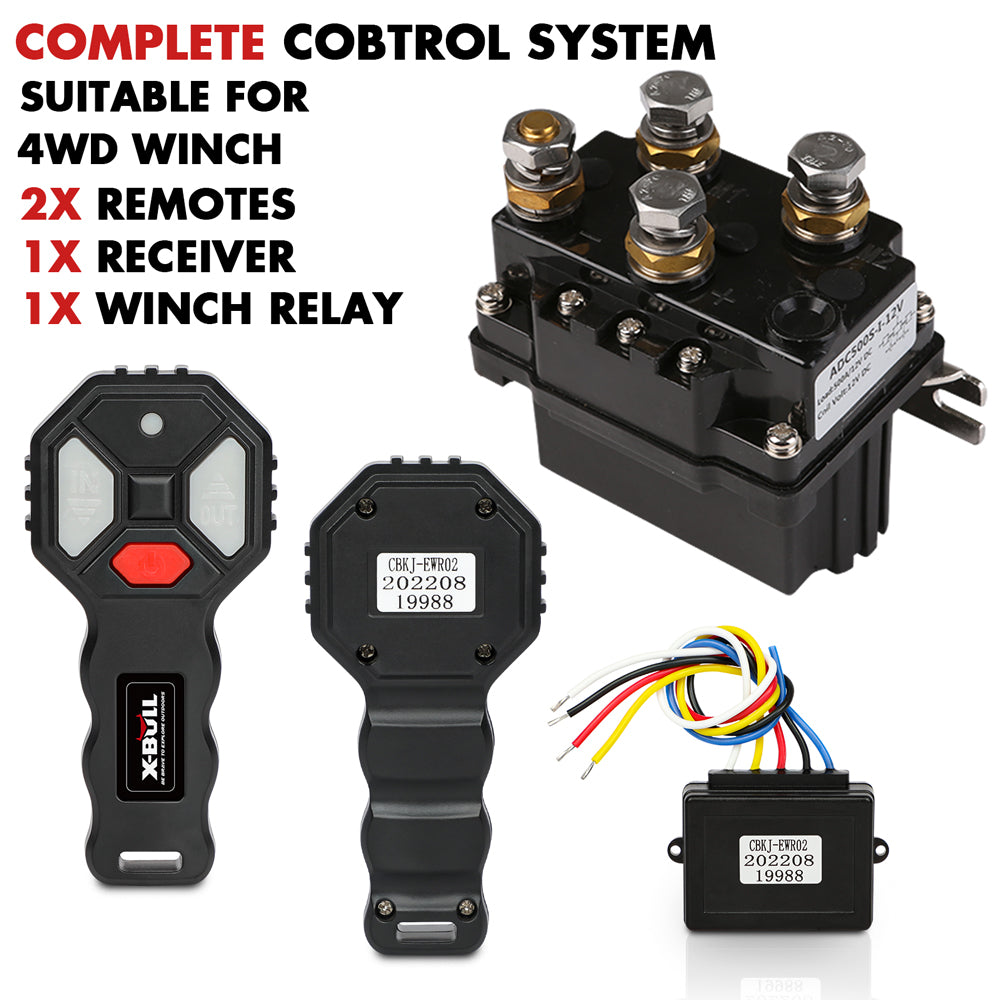

Package Contents:
2 x Remotes

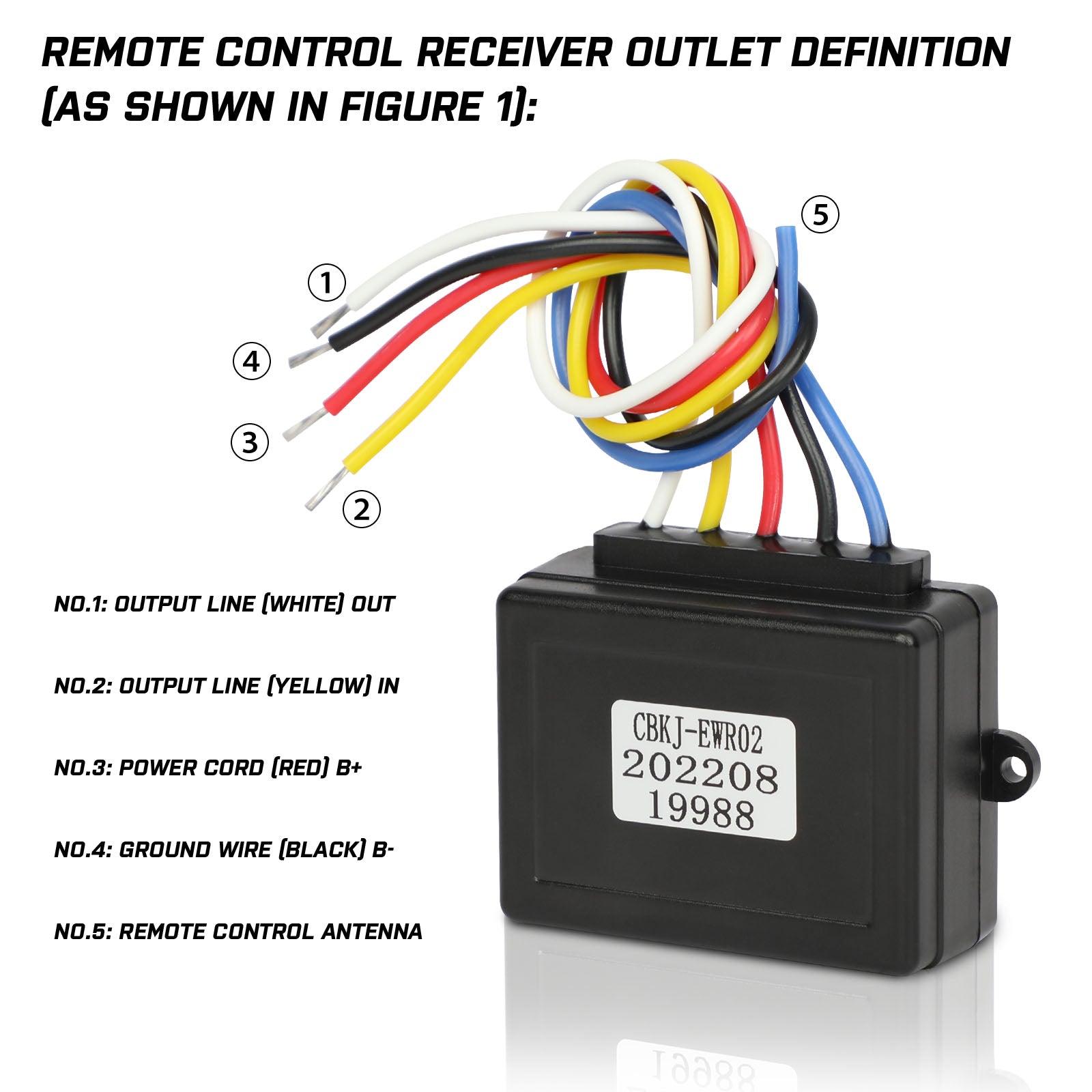

1 x Receiver
1 x User manual and battery included
1 x Winch Solenoid
